Implements & Attachments

The full lineup

Eleven implement families, forty-plus models. Built to outwork, priced to make sense — and engineered to match the tractor you already own.

Tillage & Seedbed

Break ground and build a plantable seedbed.

1 family
TLR Series Advanced Earth Rotary Tillers
Tillage & Seedbed 3-Point Hitch

Rotary Tillers

Gear-driven seedbed preparation that turns hard ground into a fine, plantable tilth in a single pass. Standard, reverse-rotation and heavy-duty builds from 48" to 74".

  • Gear-driven forward or reverse rotation
  • Standard slip-clutch driveline protection
  • Adjustable skid shoes for depth control
  • Replaceable side-drive gears
Working Width
48" – 74"
Tractor HP (PTO)
25 – 65 HP
Tractor Hitch
Cat 0 & 1 / Cat 1 & 2
Drive
Gear-driven
Models · Warranty 1 year · 5 year gearbox
TLR48S 48" · Standard-Duty
TLR62S 62" · Standard-Duty
TLR74S 74" · Standard-Duty
TLR52SR 52" · Reverse Rotation
TLR60SR 60" · Reverse Rotation
TLR72SR 72" · Reverse Rotation
TLR62H 62" · Heavy-Duty
TLR74H 74" · Heavy-Duty
Material Handling

Lift, carry and stack — pallets to round bales.

3 families
PFK Series Advanced Earth Pallet Forks
Material Handling Both Hitch

Pallet Forks

ITA Class II hardened forks on a rugged frame — move pallets, block and bundles with confidence. Quick-attach or Euro hitch, single- or double-arm.

  • ITA Class II hardened forks
  • Adjustable fork width with pin-type locks
  • Quick-attach or Euro hitch options
  • Convertible walk-through frame
Capacity
2,000 & 4,000 lb
Fork (Std)
42" – 48" × 3" × 1.125"
Fork (HD)
48" × 4" × 1.375"
Mount
Quick Attach / Euro
Models · Warranty 1 year
PFK42S 2,000 lb · Single Arm
PFK48S 2,000 lb · Double Arm
PFK48H 4,000 lb · Heavy-Duty
PFK48HEU 4,000 lb · Euro Hitch
BSP Series Advanced Earth Bale Spears
Material Handling Both Hitch

Bale Spears

German-made SHW spears that drive clean through round and square bales. Stabilizer spikes keep heavy hay steady from field to feeder.

  • German-made SHW spears
  • Stabilizer spikes hold the bale
  • Quick-attach or Euro hitch options
  • Up to 2,900 lb capacity
Capacity
Up to 2,900 lb
Spears
SHW (Germany)
Build
Standard & Standard-Duty
Mount
Quick Attach / Euro
Models · Warranty 1 year
BSP42S 42" · Quick Attach
BSP42SEU 42" · Euro Hitch
BSP42SD 42" · Standard-Duty
BSP42SDEU 42" · SD Euro Hitch
FBK Series Advanced Earth 4-in-1 Buckets
Material Handling Quick Attach Hitch

4-in-1 Buckets

Dozing, grabbing, grading and dumping in one tool. The clamshell design turns a loader into a four-function workhorse.

  • Dig, doze, grapple and grade
  • Universal quick-attach compatible
  • Standard Ag quick-connect couplers
  • Bolt-on reversible cutting edge
Working Width
60" – 72"
Functions
Dig · Doze · Grab · Grade
Couplers
Standard Ag Quick-Connect
Mount
Universal Quick Attach
Models · Warranty 1 year
FBK60S 60" · Standard-Duty
FBK66S 66" · Standard-Duty
FBK72S 72" · Standard-Duty
Land Clearing

Tear out brush, roots, rock and storm debris.

2 families

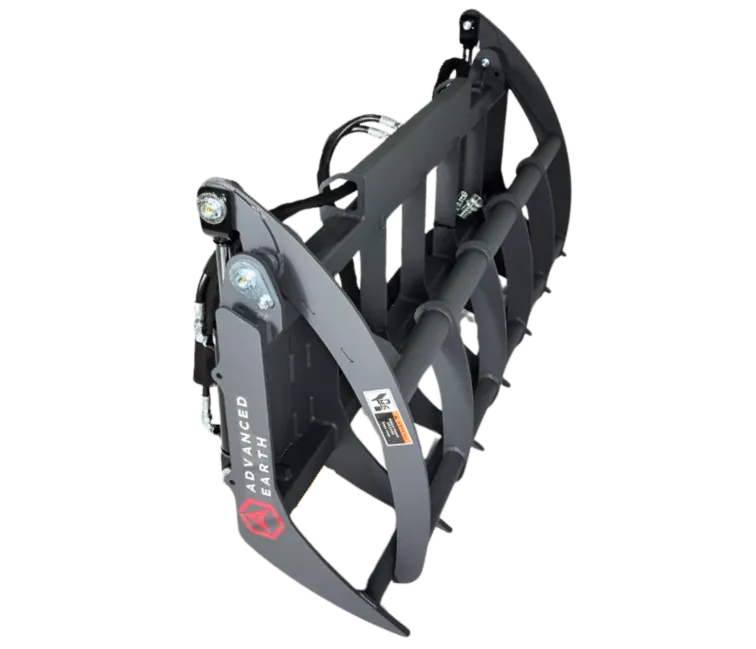

RKG Series Advanced Earth Rake Grapples
Land Clearing Quick Attach Hitch

Rake Grapples

Tine-style grapples that comb out brush, roots and debris while letting dirt fall through. Universal quick-attach in standard and medium-duty builds.

  • Universal quick-attach compatible
  • Tine spacing sheds dirt, keeps debris
  • Bolt-on replaceable tines
  • Greasable pivot points
Working Width
48" – 72"
Build
Standard & Medium-Duty
Cylinders
Dual
Mount
Universal Quick Attach
Models · Warranty 1 year
RKG48S 48" · Standard-Duty
RKG54S 54" · Standard-Duty
RKG60S 60" · Standard-Duty
RKG66S 66" · Standard-Duty
RKG72S 72" · Standard-Duty
RKG60MD 60" · Medium-Duty
RKG72MD 72" · Medium-Duty
RTG Series Advanced Earth Root Grapples
Land Clearing Quick Attach Hitch

Root Grapples

Heavy solid-tine grapples built to wrestle stumps, rock and storm debris. Twin independent arms grip uneven loads and hold them tight.

  • Independent dual grapple arms
  • Grease fittings at all pivot points
  • Tied-tine frame resists twisting
  • Universal quick-attach mount
Working Width
60" – 72"
Build
Standard-Duty
Arms
Dual Independent
Mount
Universal Quick Attach
Models · Warranty 1 year
RTG60SD 60" · Standard-Duty
RTG66SD 66" · Standard-Duty
RTG72SD 72" · Standard-Duty
Grading & Earthmoving

Cut, level and crown drives, lots and lanes.

4 families
BXB Series Advanced Earth Box Scrapers
Grading & Earthmoving 3-Point Hitch

Box Scrapers

Level drives, cut grade and rip compacted ground. Dual reversible edges and adjustable scarifiers make quick work of road and lot maintenance.

  • Dual bolt-on reversible cutting edges
  • Adjustable scarifiers w/ replaceable teeth
  • Category 1 quick-hitch compatible
  • Gusseted scarifier support box
Working Width
48" – 72"
Cutting Edges
Dual Reversible
Scarifiers
Adjustable, Replaceable Teeth
Hitch
Cat 1 Quick-Hitch
Models · Warranty 1 year
BXB48S 48" · Standard-Duty
BXB60S 60" · Standard-Duty
BXB66S 66" · Standard-Duty
BXB72S 72" · Standard-Duty
GSC Series Advanced Earth Grading Scrapers
Grading & Earthmoving 3-Point Hitch

Grading Scrapers

Land-plane style grading for driveways and lanes. Dual angled blades knock down high spots and fill low ones for a smooth, crowned finish.

  • Bolt-on replaceable skid shoes
  • Adjustable forward / reverse angle
  • Adjustable tilt and offset
  • Cat 1 hitch compatible
Working Width
60" – 72"
Blades
Dual Angled
Adjustment
Angle · Tilt · Offset
Hitch
Cat 1
Models · Warranty 1 year
GSC60S 60" · Standard-Duty
GSC72S 72" · Standard-Duty

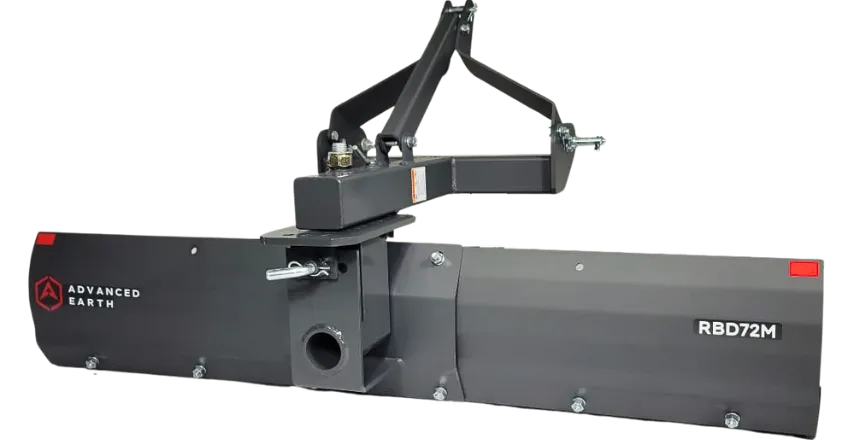

RBD Series Advanced Earth Rear Blades
Grading & Earthmoving 3-Point Hitch

Rear Blades

Versatile moldboard blades for grading, back-dragging and snow. Multi-position angle, tilt and offset cover everything from the lane to the lot.

  • Forward angle — 5 positions, up to 30°
  • Reverse angle — 3 positions, up to 15°
  • Adjustable tilt and offset
  • Bolt-on reversible cutting edge
Working Width
60" – 84"
Build
Medium-Duty
Forward Angle
5 positions · 30°
Reverse Angle
3 positions · 15°
Models · Warranty 1 year
RBD60M 60" · Medium-Duty
RBD72M 72" · Medium-Duty
RBD84M 84" · Medium-Duty

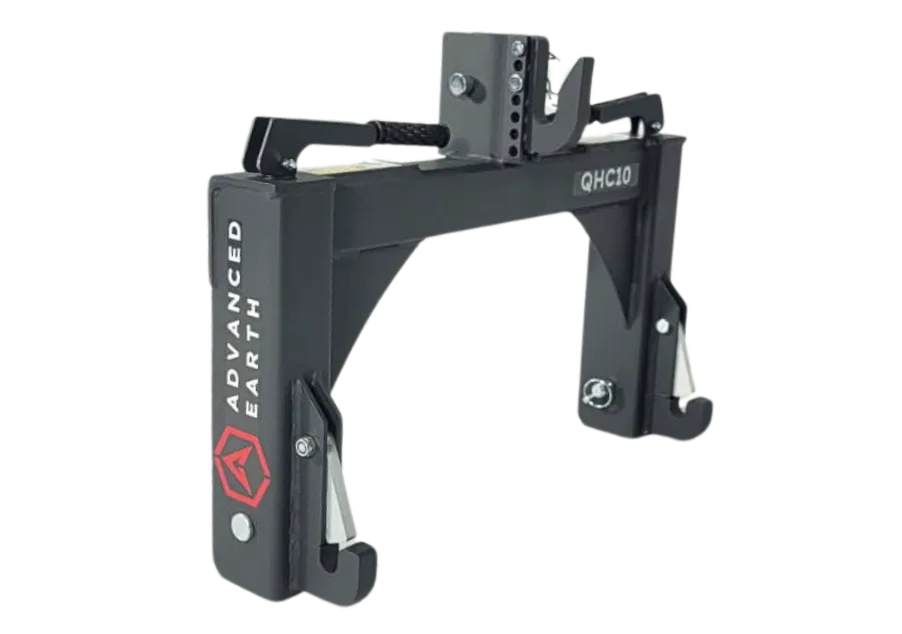

QHC Series Advanced Earth Quick Hitch
Grading & Earthmoving 3-Point Hitch

Quick Hitch

Hook up 3-point implements without leaving the seat. A 3-position adjustable boom and automatic pin lock make swaps fast and safe.

  • 3-position adjustable boom
  • Automatic lower hitch pin lock
  • Category 1 compatible
  • Welded, powder-coated frame
Category
Cat 1
Boom
3-Position Adjustable
Lock
Automatic Pin Lock
Dimensions
7.75"L × 31.6"W × 23.25"H
Models · Warranty 1 year
QHC10 Cat 1 Quick Hitch
